TOP-D1008

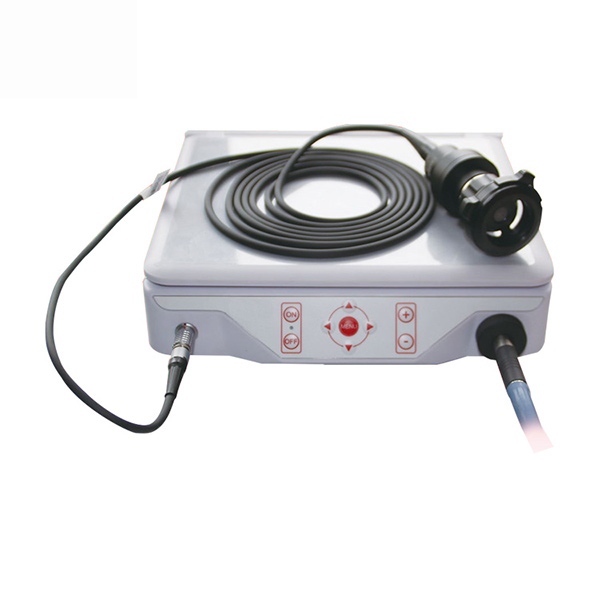

Medical Endoscope CCD Camera & Standard Monitor & LEDLight Source & HD Recorder
• Endoscope camera is up to 700lines.
• LED lightsource: Long service life ismore than 20,00-40,00hours.
• Natural white light>6500K, not yellow.. High-quality recorder.
• Easy tocarry and operate.
• Application: ENT
DetailedParameter As Following Table:
HD Recorder |
Specifications | Parameters | External U flash disk
| Max 64G |
Recordering format | MP4 | External mobile HDD | Max 2T |
Recordering quality | MAX 18Mbs @1080P 30Fps | Recorder interface | Support USB disk & removablehard disk |
Standard Monitor | LCD screen | 10 inch | Resolution | 1280(RGB)*800 | Contrast ratio | 1300:1 | Port | Camera head port-1pc; Light cable socket-1pc; Usb port- 1pc; |
|
| LED Light Source | Input power | 35VA | Light output hole diameter | φ(10±0.10) mm | Light source | LED | Working conditions | 5℃~+40℃ | Brightness | ≥190,000Lux | Storage conditions | -40℃~+50℃ | Color | ≥6500K | Continuous | >4h | temperature |
| working hours |
|
|
Endoscope CCD Camera |
Image devices | 1/3 CCD | SNR | 250dB |
SY | PAL | Brightness | ODS Ajustabie |
Total Pixels | N:811(H)*508(V) P:795(H)*596 (V) | Backight processing | Wide dynamic(rank asjustable) /backight componsation/strong inhibition |
Effecive Pxels | N:768(H)*494(V) P:752(H)*582 (V) | Synchronous system | Internal Synchronization |
Scanning system | 2:1 interlaced | White balance | ATW1/ATW2/MANUA |
Scan frequency | N:15.734KHZ 59.94HZ P:15.635KHZ 50HZ | Acutance &saburation | Turm on/off grade adjustable |
Scarning mode | Interlaced scanning | AG | Low/medi um/high/of grade adjustable |
Horizontal Resolution | 700TVL | Minimum lumination | F1.2≤0.5lx |
Electronie shutter | N:1/60S-110000sec P:1/50S-120000sec | Rollovers | on/off |
OSD Control-Menu | Buit in external | DNR | 2D VOx |
